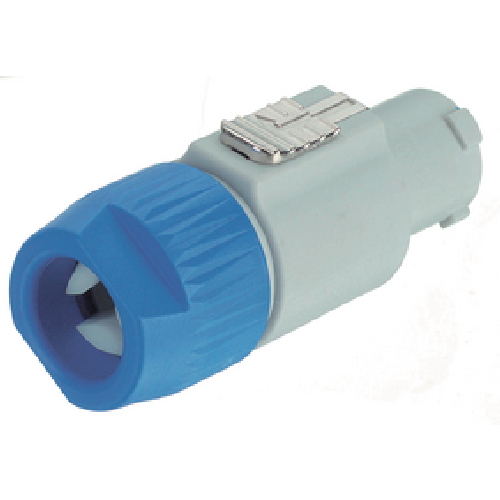

Connettore Presa volante PowerCon 2+PEP

Name: Connettore Presa volante PowerCon 2+PEP
SKU: NTR-NAC3FCB
Availability: InStock

€ 9.79

Spina presa di corrente per correnti elevate (20 A/250 V)

Confronta

COD: NTR-NAC3FCB Categorie: Componenti elettronici, Connessioni - Balun, Connettori - Adattatori, Videosorveglianza Tag: connessioni audio, connettore da pannello, fai da te, neutrik

Cable connector, quick lock with securing lever, B-type for power-out, screw terminals

The PowerCon is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a save power connection.

Attention: The PowerCon is a connector without breaking capacity, i.e. the PowerCon should not be connected or disconnected under load or live!

Features & Benefits

Locking 20 A / 250 V ac appliance coupler

3 contacts for line, neutral and premating safety ground
power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating

Fast and easy twist lock latching system

Extremely robust and reliable

Ergonomic design

User friendly latch design for easy handling

Unique Neutrik chuck type strain relief

UL, cUL recognized components

VDE certified

SEV approved

Branded with unique hologram – guarantees genuine and authentic Neutrik product
