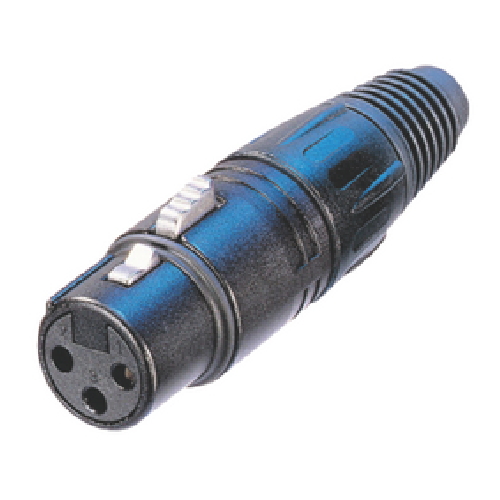

Connettore volante nero XLR da pannello a 3 poli

TECHNICAL DATA

Electrical
Number of contacts: 3
Contact resistance: ≤ 3 m
Insulation resistance
– initial: 2 G
– after damp heat test: 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: ≤ 4 pF

Mechanical
Lifetime: 1000 cycles
Insertion / withdrawal force: ≤ 20 N
Cable O.D. range: 3.5 mm – 8.0 mm

Materials
Shell: ZnAl4Cu1, black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuSn8
Contact surface: gal 0.2 µm Au hard alloy over 2 µm Ni
Latch lock (female): St3K32
Strain-relief clamp: POM
Antikink bushing: PUR

Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20

Compatibility / Remarks
Compatibility: IEC tentative standard & Switchcraft QG & Cannon XLR
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix ´-D´
